Description

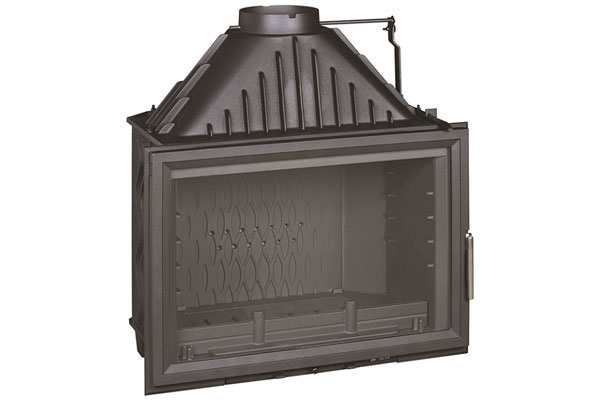

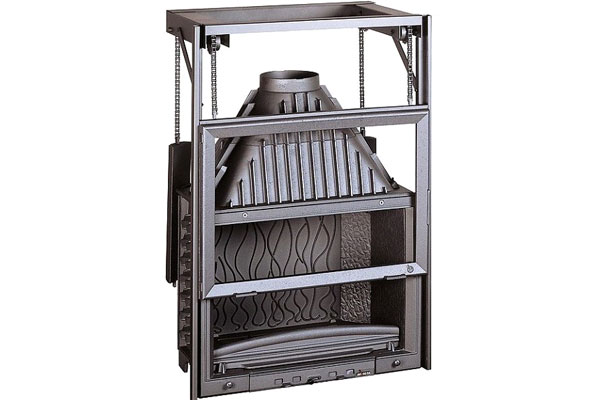

Energy save fireplaces INVICTA FOYER GRAND VISION with sliding or opening door in four dimensions. Made in France entirely from cast iron. Certification according to UNE EN 13229. Factory warranty 5 years. With the possibility, adding the necessary KIT, of hot air circulation. Models 70 and 80 are also available with a printed frame on the black door. As an option, choose a cast iron, adjustable damper for an additional small charge.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | 700 | 800 | 900 | 1100 |
Πλάτος / Width | cm | 70 | 80 | 90 | 110 |
Βάθος / Depth | cm | 52 | 54 | 54 | 52 |
Ύψος / Height | cm | 105 | 116 | 116 | 116 |
Διαστάσεις κρυστάλλου (Π x Υ) / Glass dimensions (W x H) | cm | 60 x 42 | 68 x 46 | 79 x 46 | 99 x 46 |
Ωφέλιμη ισχύς (min/max) / Useful heat output | KW | 14 | 14 | 18 | 18 |
Απόδοση / Efficiency | % | 70 | 70 | 70 | 70 |
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 4.7 | 4.7 | 6.0 | 6.0 |
ø έξοδος καπνού / Ø Combustion product outlet | cm | 20 | 20 | 20 | 23 |
ø παροχή αέρα / Ø External air intake | cm | NO | NO | NO | NO |
Συνολικό βάρος / Total weight | Kg | 162 | 202 | 219 | 265 |
CO | % | 0.26 | 0.26 | 0.26 | 0.26 |
Ενεργειακή κλάση / Energy class | Α | Α | Α | Α |
