Description

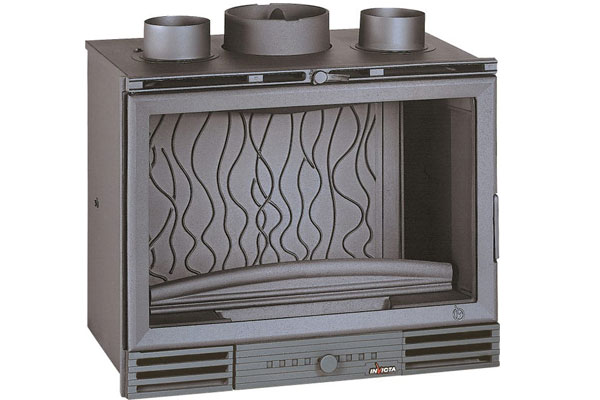

INVICTA INSERT 700 compact 520 C energy save cassette from the French company INVICTA, with a special height of 52 cm. Made of primary cast iron. It has a crystal cleaning system. Built-in 2, 2-speed fans (160 m³ / h each) and thermostat for automatic start and stop operation. Its efficiency is 70.8%. Certification according to UNE EN 13229. Factory warranty 5 years. The cassette is made entirely in France.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
Πλάτος / Width | cm | 70 |
Βάθος / Depth | cm | 48 |
Ύψος / Height | cm | 52 |
Διαστάσεις κρυστάλλου (Π x Υ) / Glass dimensions (W x H) | cm | 61 x 33 |
Ωφέλιμη ισχύς (min/max) / Useful heat output | KW | 14 |
Απόδοση / Efficiency | % | 70,8 |
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 4,7 |
ø έξοδος καπνού / Ø Combustion product outlet | cm | 20 |
ø παροχή αέρα / Ø External air intake | cm | 12 |
Συνολικό βάρος / Total weight | Kg | 136 |
CO | % | 0,23 |
Ενεργειακή κλάση / Energy class | Α |
