Description

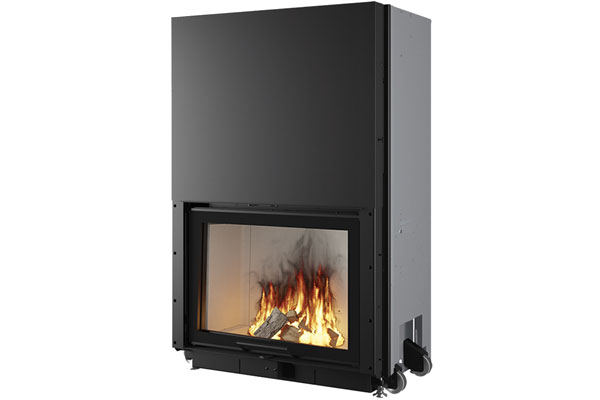

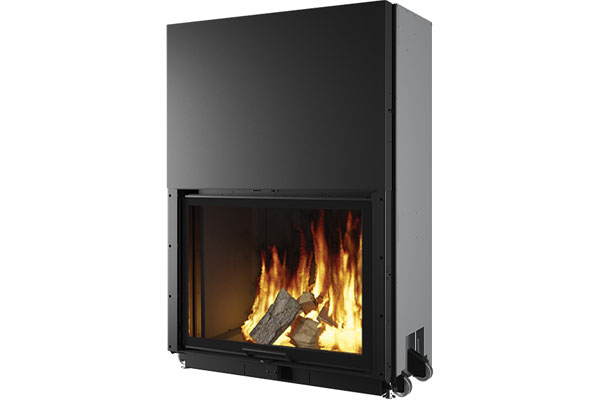

The middle, straight fireplaces of the WINDO series are available in four different dimensions: 70, 90, 100, 120 cm wide. It can be placed directly on the floor. Some of their special features are the adjustable legs, with 4 removable wheels for easy transport, with sliding up and opening outwards door for cleaning the glass, detachable handle. Secondary combustion and soot protection system for the glass (air curtain) as in all fireplaces of EDILKAMIN as well as the possibility for air heating operation by selecting one of three different KITs.

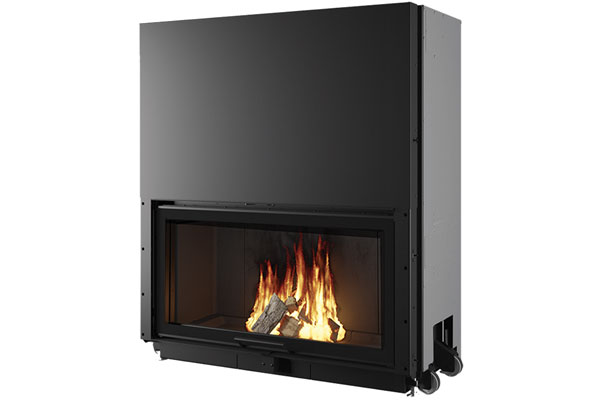

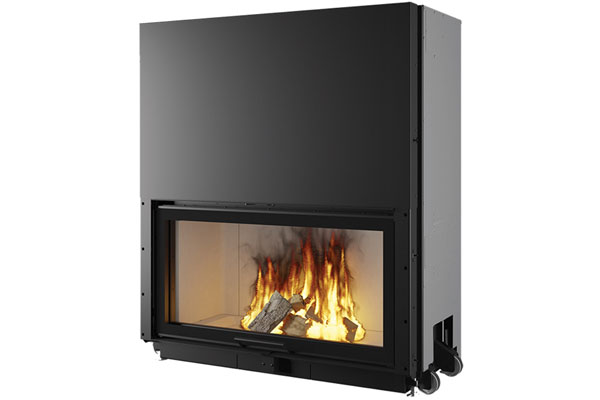

The quoted price is for white fireproof material. There is the possibility for interior lining with fireproof black material.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | 70 | 90 | 100 | 120 |
| Πλάτος / Width | cm | 93 | 113 | 123 | 143 |
| Βάθος / Depth | cm | 53 | 53 | 53 | 53 |
| Ύψος / Height | cm | 135 | 153 | 153 | 135 |
| Διαστάσεις στομίου εστίας (Π x Β x Υ) / Fireplace mouth measurement (W x D x H) | cm | 65 x 31 x 45 | 85 x 31 x 61 | 94 x 31 x 45 | 114 x 31 x 45 |
| Ωφέλιμη ισχύς (min/max) / Useful heat output | KW | 14,3 | 17,0 | 18,0 | 19,0 |
| Απόδοση / Efficiency | % | 81.4 | 78,0 | 78,0 | 78,0 |
| Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 4,0 | 4,7 | 5,0 | 5,3 |
| ø έξοδος καπνού / Ø Combustion product outlet | cm | 18 | 18 | 18 | 18 |
| ø παροχή αέρα / Ø External air intake | cm | ||||
| Συνολικό βάρος / Total weight | Kg | 220 | 250 | 380 | 430 |
| Θερμαινόμενος όγκος (μόνωση σύμφωνα με το νόμο 10/91) / Vol. that can be heated (insul. env. by Law 10/91) | m³ | 375 | 445 | 470 | 495 |
