Description

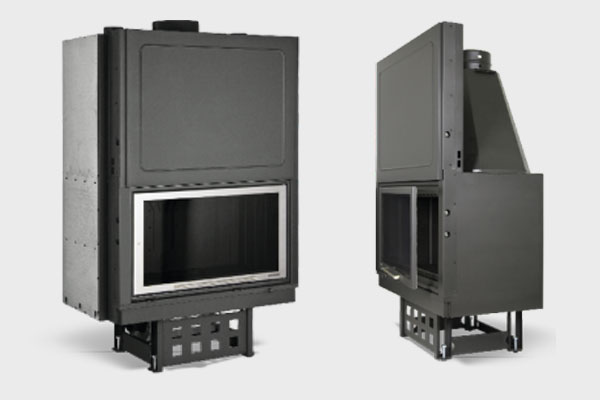

Linear design, panoramic fire projection and large hearth make this fireplace a great choice for your home. It is distinguished by its performance and high capacity of wood. Large door with easy and silent operation thanks to the latest generation of lifting guides. Available in natural flow or with hot air fan. Certified according to EN 13229. Our price for the air-fan version includes: double suction motor 800 m³ / h of German origin, relief louvre and two blinds for the hot air ducts. Also available with a stainless-steel door at an additional cost of 180 €.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
| Πλάτος / Width | cm | 110 |
| Βάθος / Depth | cm | 62 |
| Ύψος / Height | cm | 187 |
| Θερμική ισχύς / Thermal power | KW | 13,3 |
| Θερμική απόδοση / Efficiency | % | 75 |
| Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 4-6 |
| ø Έξοδος καυσαερίων / Smoke outlet | mm | 250 |
| ø Άνοιγμα εισαγωγής αέρα για την καύση / Outer air inlet dimensions | mm | 150 |
| ø Παροχή αέρα αερόθερμου ( είσοδος ) / Fan heater air inlet ( intake) | mm | 2 X 120 |
| ø Παροχή αέρα αερόθερμου ( έξοδος) / Fan heater air inlet (exit) | mm | 2 X 100 |
| Συνολικό βάρος / Total weight | Kg | 308 |
| CO ( σε 13% O2 ) | mg/Nm³ | 235,56 |
| Θερμοκρασία εξόδου καυσαερίων ( μ.ο. ) / Smoke exit temperature (Avg.) | ˚C | 290 |
See details :
