Description

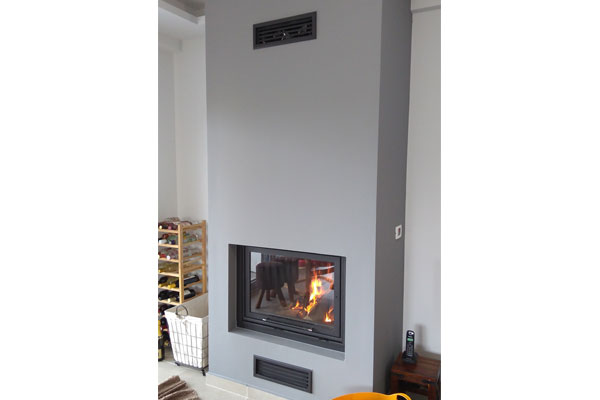

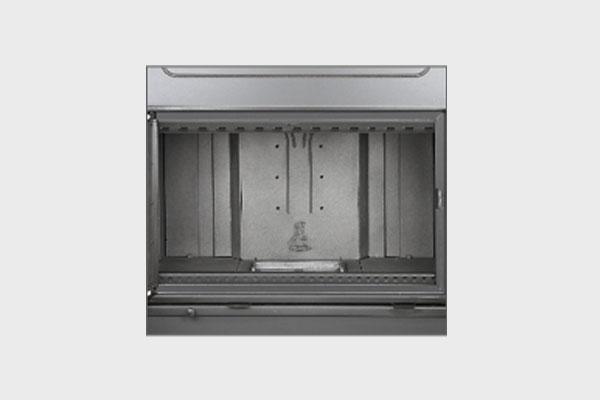

Monoblock high-efficiency flat hearth made of cast iron, suitable for small spaces where a small overall external dimension is required. Available in natural flow or with hot air fan. The end product guarantees high thermal efficiency with low consumption. Certified in accordance with EN 13229. Our price for the air-fan version includes: double suction motor 800 m³ / h of German origin, relief louvre and two blinds for the hot air ducts. Also available with a stainless-steel door at an additional cost of 150 €
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
Πλάτος / Width | cm | 82 |
Βάθος / Depth | cm | 52 |
Ύψος / Height | cm | 181 |
Θερμική ισχύς / Thermal power | KW | 12,2 |
Θερμική απόδοση / Efficiency | % | 70 |
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 4-6 |
ø Έξοδος καυσαερίων / Smoke outlet | mm | 250 |
ø Άνοιγμα εισαγωγής αέρα για την καύση / Outer air inlet dimensions | mm | 150 |
ø Παροχή αέρα αερόθερμου ( είσοδος ) / Fan heater air inlet ( intake) | mm | 2 X 120 |
ø Παροχή αέρα αερόθερμου ( έξοδος) / Fan heater air inlet (exit) | mm | 2 X 100 |
Συνολικό βάρος / Total weight | Kg | 235 |
CO ( σε 13% O2 ) | mg/Nm³ | 225,77 |
Θερμοκρασία εξόδου καυσαερίων ( μ.ο. ) / Smoke exit temperature (Avg.) | ˚C | 290 |
