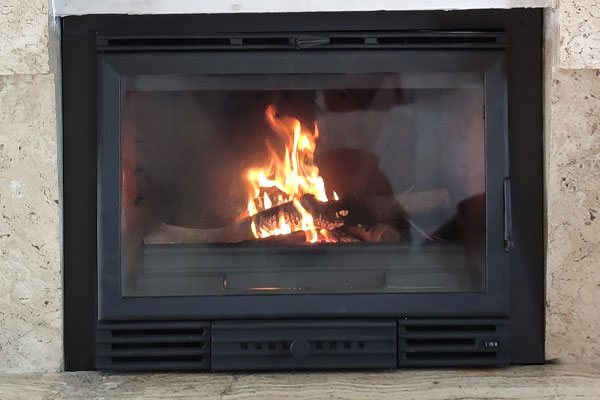

Energy save cassette INVICTA INSERT GRANDE VISION

970 1.115

Clear
taxes (24%) NOT included
SKU: 967144 - 968244 Category:

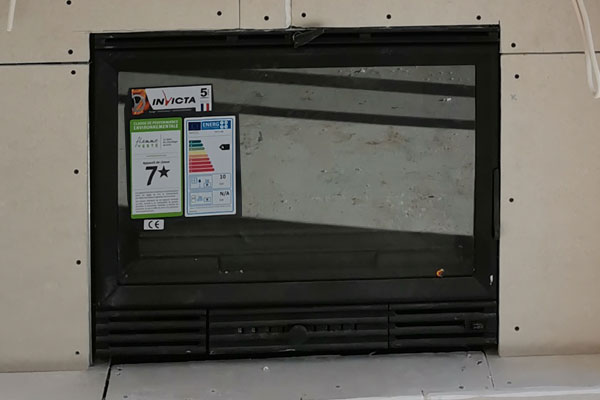

Energy save cassettes INVICTA INSERT GRANTE VISION (GV). Made by the French company INVICTA. Double back, cutter, damper. They have a crystal cleaning system, secondary combustion, glass-ceramic glass. Built-in 2 fans, each 160 m³ / h and thermostat for automatic start and stop of the fans. Their efficiency is over 75%. They promise low wood consumption and high efficiency. ‘They have 3 places for grill. Certified according to the UNE EN 13229 standard and are classified with the international certification Flamme verte with seven stars the GV 700 (the highest) and with six stars the GV 800. Factory warranty 5 years. The cassettes are made in France and are available in two models.

ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATAΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT
Πλάτος / Widthcm7080
Βάθος / Depthcm4548
Ύψος / Heightcm5558
Διαστάσεις κρυστάλλου (Π x Υ) / Glass dimensions (W x H)cm61 x 4071 x 41
Ωφέλιμη ισχύς (min/max) / Useful heat outputKW1012
Απόδοση / Efficiency%7675
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood)Kg/h3,34
ø έξοδος καπνού / Ø Combustion product outletcm2020
ø παροχή αέρα / Ø External air intakecm1212
Συνολικό βάρος / Total weightKg134151
CO%0,120,15
Ενεργειακή κλάση / Energy classΑA
