Description

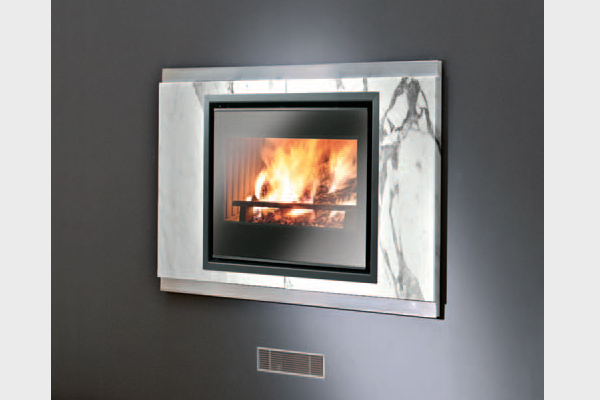

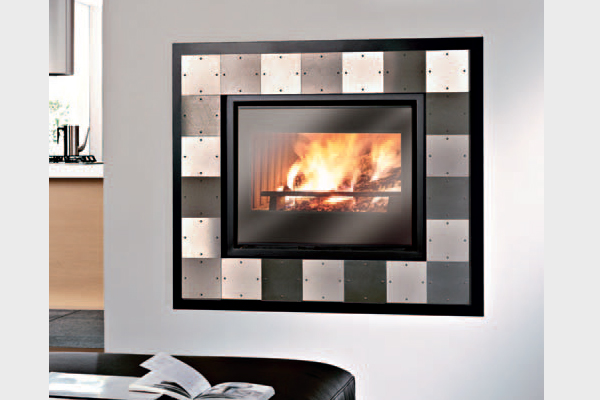

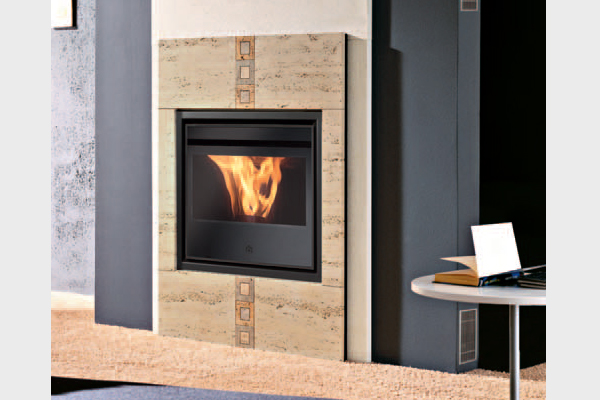

Fireplace upgrading cassette with façade all ceramic glass and cast-iron interior. Very robust construction and special care in its aesthetics. It has a combustion air regulation system. Available with hot air circulation with a ventilator kit. The small dimensions of the Luce 54 make it ideal for small areas or where we want a small fireplace. The Luce 62 has larger dimensions and we recommend it not so much for fitting to an existing fireplace but for the initial placement. This is because its particularly large height (65 cm) is usually dissuasive for mounting on an existing structure, but at the same time makes it particularly attractive to be placed from the start.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | LUCE PLUS & LUCE PLUS/S 54 | LUCE PLUS & LUCE PLUS/S 62 |
Πλάτος / Width | cm | 65 | 70 |
Βάθος / Depth | cm | 45 | 50 |
Ύψος / Height | cm | 56 | 65 |
Διαστάσεις στομίου εστίας (Π x Β x Υ) / Fireplace mouth measurement (W x D x H) | cm | ||
Ωφέλιμη ισχύς (min/max) / Useful heat output | KW | 9/11 | 9/11 |
Απόδοση / Efficiency | % | ||
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 1-4 | 1-4 |
ø έξοδος καπνού / Ø Combustion product outlet | cm | 20 | |
ø παροχή αέρα / Ø External air intake | cm | 14 | |
Συνολικό βάρος / Total weight | Kg | 126-120 | 144-137 |
Θερμαινόμενος όγκος (μόνωση σύμφωνα με το νόμο 10/91) / Vol. that can be heated (insul. env. by Law 10/91) | m³ | 235 | 285 |
