Description

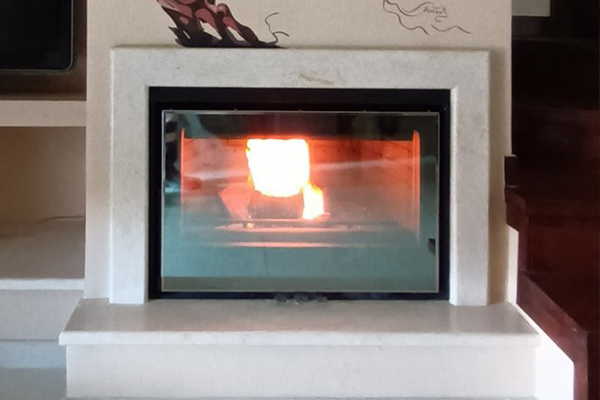

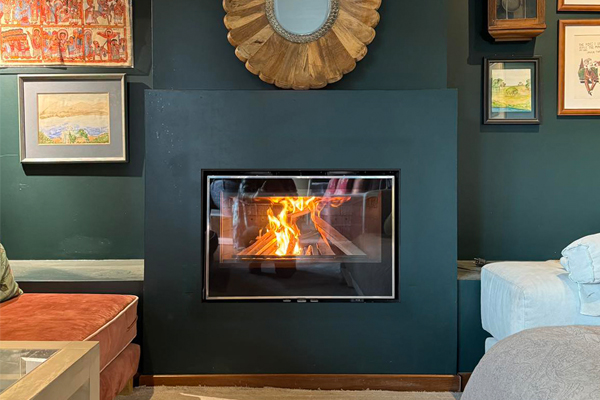

The MYSTIC MIRROR fireplace cassette is available in 2 dimensions (width) 78 cm or 90 cm and inside it either with cast iron or vermiculite plates. Its front is with crystal-mirror and the door frame with INOX.
Its sturdy construction, with a 5 mm thick metal frame, is combined with an efficiency of over 80 % ensured by the double cutter and the air intake settings ( adjustable intakes for primary-combustion, secondary-combustion and tertiary-air-air-curtain ). Silent cross flow motors with a button to switch them off when the door is opened. Separate and affordable.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | MYSTIC 78 | MYSTIC 90 |
| Πλάτος / Width | cm | 78,5 | 90,5 |
| Βάθος / Depth | cm | 53,3 | 53,3 |
| Ύψος / Height | cm | 52,0 | 52,0 |
| Διαστάσεις στομίου εστίας (Π x Β x Υ) / Fireplace mouth measurement (W x D x H) | cm | 64x31x25 | 77x40x26 |
| Ωφέλιμη ισχύς (min/max) / Useful heat output | KW | 12,5 | 14,4 |
| Απόδοση / Efficiency | % | 80,7 | 80,3 |
| Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 3,7 | 3,6 |
| ø έξοδος καπνού / Ø Combustion product outlet | cm | 20 | 20 |
| ø παροχή αέρα / Ø External air intake | cm | ||
| Συνολικό βάρος / Total weight - Vermiculite / Cast iron | Kg | 106-130 | 128-151 |
| Θερμαινόμενος όγκος (μόνωση σύμφωνα με το νόμο 10/91) / Vol. that can be heated (insul. env. by Law 10/91) | m³ | 280 | 320 |
