Description

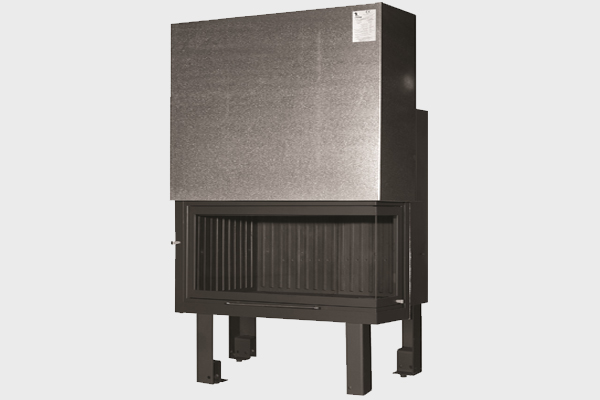

Energy save steel fireplace two-sided, single wall, of satisfactory dimensions. It is made of 4 mm thick steel and internally lined, its combustion chamber, with 10-12 mm thick removable cast iron plates. Available either with a sliding upwards or outwards opening door. For smooth and silent operation, telescopic guides of the German company SCHOCK are installed. Other technical features include: secondary and tertiary combustion (preset), air curtain, external lever for damper control.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | ΠΛΑΪΝΟ ΤΖΑΜΙ / SIDE GLASS 17cm | ΠΛΑΪΝΟ ΤΖΑΜΙ / SIDE GLASS 43cm |
| Πλάτος / Width | cm | 103 | 106 |
| Βάθος / Depth | cm | 66 | 55 |
| Ύψος / Height | cm | 187 | 187 |
| Διαστάσεις στομίου εστίας (Π x Β x Υ) / Fireplace mouth measurement (W x D x H) | cm | 89 x 55 x 48 | 89 x 44 x 44 |
| Θερμική ισχύς / Thermal power | KW | 26,0 | 24,1 |
| Θερμική απόδοση / Efficiency | % | 69 | 70 |
| Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 7,2 | 7,9 |
| ø Έξοδος καυσαερίων / Smoke outlet | cm | 25 | 25 |
| Συνολικό βάρος / Total weight | Kg | 270 | 245 |
