Description

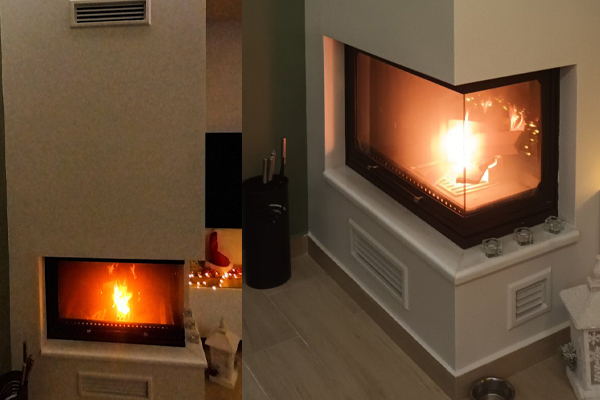

Two-sided monoblock energy hearth with high capacity and high efficiency. With the option of a panoramic one-piece ceramic glass that allows visual contact with the fire from 90º. Silent sliding and opening door with latest generation linear telescopic guides Available in natural flow or with hot air fan. The air-fan version includes: a double suction motor of 800 m³ / h of German origin, a relief louvre and two blinds for the hot air ducts. It is also available with an INOX door for an extra 210 € and also with one-piece ceramic glass 90º with an additional 339€.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
| Πλάτος / Width | cm | 90 |
| Βάθος / Depth | cm | 63 |
| Ύψος / Height | cm | 189 |
| Θερμική ισχύς / Thermal power | KW | 16 |
| Θερμική απόδοση / Efficiency | % | 75 |
| Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 4-6 |
| ø Έξοδος καυσαερίων / Smoke outlet | mm | 250 |
| ø Άνοιγμα εισαγωγής αέρα για την καύση / Outer air inlet dimensions | mm | 150 |
| ø Παροχή αέρα αερόθερμου ( είσοδος ) / Fan heater air inlet ( intake) | mm | 2 X 120 |
| ø Παροχή αέρα αερόθερμου ( έξοδος) / Fan heater air inlet (exit) | mm | 2 X 100 |
| Συνολικό βάρος / Total weight | Kg | 275 |
| CO ( σε 13% O2 ) | mg/Nm³ | 230,7 |
| Θερμοκρασία εξόδου καυσαερίων ( μ.ο. ) / Smoke exit temperature (Avg.) | ˚C | 290 |
