Description

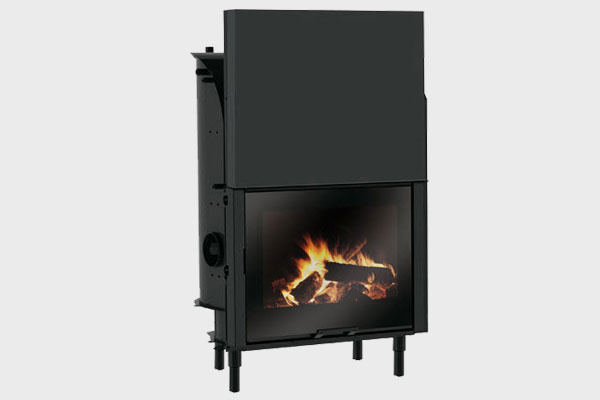

H2OCEANO is the new proposal of EDILKAMIN’s radiant fireplaces. Available in three models with sliding doors: 15 Kw, 23 Kw and 28 Kw. All three types are for installation with an open expansion vessel. The boiler fully encloses the combustion chamber and hence increases the heat exchange surface. Steel cabinet and frame, cast iron base in the combustion chamber, flat glass, spit plugs are some of the other features.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | 15 | 23 | 28 |
Πλάτος / Width | cm | 74 | 88 | 106 |
Βάθος / Depth | cm | 62 | 68 | 78 |
Ύψος / Height | cm | 135 | 147 | 147 |
Διαστάσεις στομίου εστίας (Π x Β x Υ) / Fireplace mouth measurement (W x D x H) | cm | 52 x 40 x 40 | 60 x 50 x 40 | 78 x 63 x 40 |
Συνολική Ωφέλιμη ισχύς / Total Beneficial Power (max) | kw | 15 | 23 | 28 |
Ωφέλιμη ισχύς στο νερό / Useful power in water | kw | 12,1 | 18,2 | 22,8 |
Συνολική απόδοση / Total Efficiency | % | 83,1 | 82,3 | 81,5 |
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 4,5 | 6,3 | 7,8 |
Περιεχόμενο νερού / Water content | lt | 75 | 100 | 130 |
ø έξοδος καπνού / Ø Combustion product outlet | cm | 18 | 22 | 25 |
ø παροχή αέρα / Ø External air intake | cm | 12,5 | 12,5 | 12,5 |
Συνολικό βάρος / Total weight | Kg | 240 | 285 | 325 |
Θερμαινόμενος όγκος (μόνωση σύμφωνα με το νόμο 10/91) / Vol. that can be heated (insul. env. by Law 10/91) | m³ | 355 | 535 | 670 |
