Description

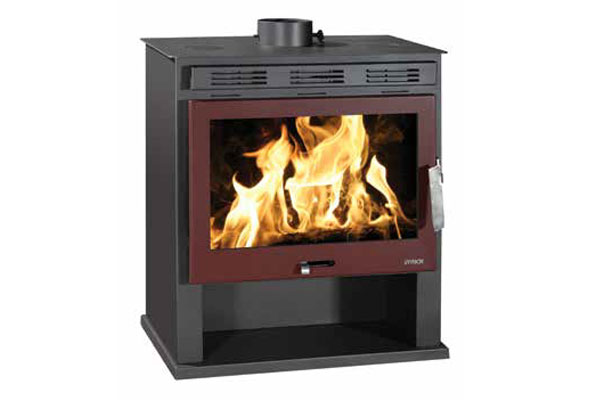

Fan wood stove with base for storing wood at the bottom. At the top, if we remove the caps, we can connect air tubes to channel air to adjacent rooms. Satisfactory combustion chamber, large glass, excellent efficiency and heat dissipation due to the ventilator. The stove is also available with side windows (P) at an additional cost of 90 €.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
Πλάτος / Width | cm | 73 |
Βάθος / Depth | cm | 50 |
Ύψος / Height | cm | 91 |
Διαστάσεις στομίου εστίας (Π x Β x Υ) / Fireplace mouth measurement (W x D x H) | cm | 68x41x44 |
Ωφέλιμη ισχύς (min/max) / Useful heat output | KW | 16,3 |
Απόδοση / Efficiency | Kg/h | |
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | cm | 1-4 |
ø έξοδος καπνού / Ø Combustion product outlet | cm | 15 |
ø παροχή αέρα / Ø External air intake | Kg | |
Συνολικό βάρος / Total weight | m³ | 145 |
Θερμαινόμενος όγκος (μόνωση σύμφωνα με το νόμο 10/91) / Vol. that can be heated (insul. env. by Law 10/91) | Kg/h |
