Description

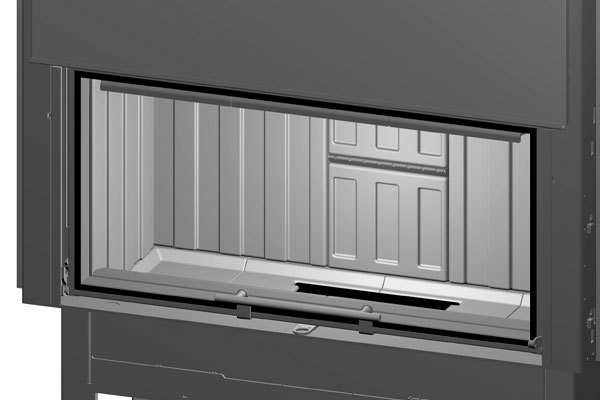

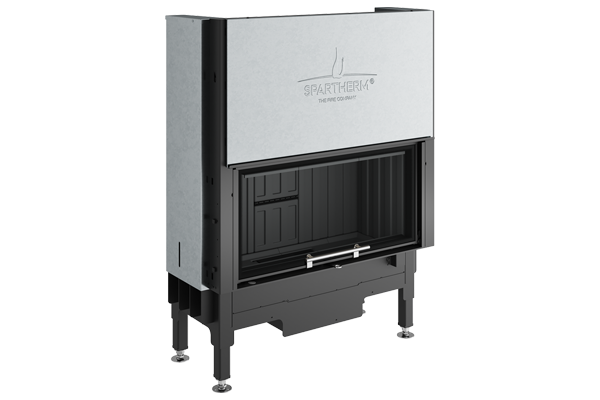

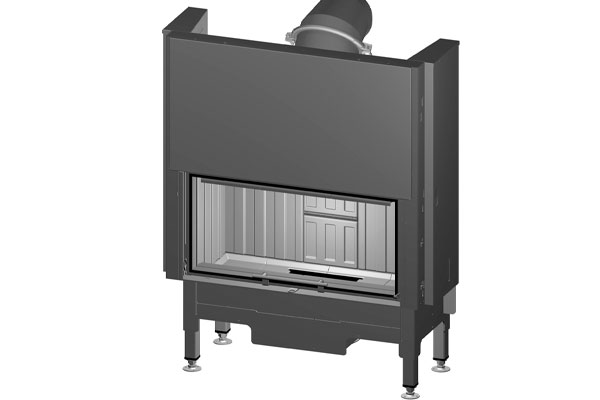

The AS (opening outwards door) and Ash (sliding upwards door) models have a very special design. Narrow in height and normal in length. For normal air circulation (natural flow) or rushed by motor (S-Vent). Also with the possibility for complete control of combustion with the S-Thermatik NEO system.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | AS | ASh |
Πλάτος / Width | cm | 86 | 91 |
Βάθος / Depth | cm | 41 | 55 |
Ύψος / Height | cm | 121 | 121 |
Διαστάσεις στομίου εστίας (Π x B x Υ) / Fireplace mouth measurement (W x D x H) | cm | 75 x 36 x 38 | 73 x 50 x 37 |
Θερμική ισχύς / Thermal power | KW | 11,0 | 11,0 |
Θερμική απόδοση / Efficiency | % | 80 | 80 |
ø Έξοδος καυσαερίων / Smoke outlet | cm | 18 | 18 |
Συνολικό βάρος / Total weight | Kg | 166 | 209 |
