Description

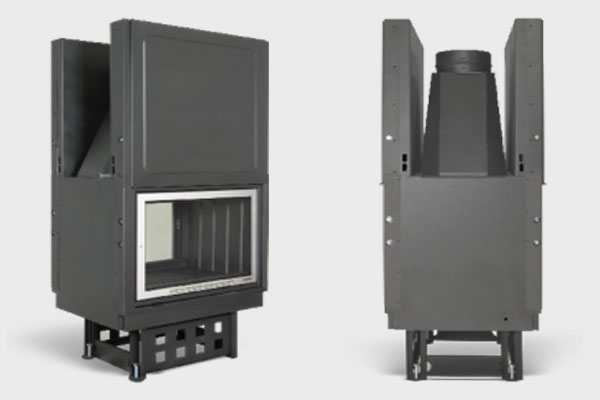

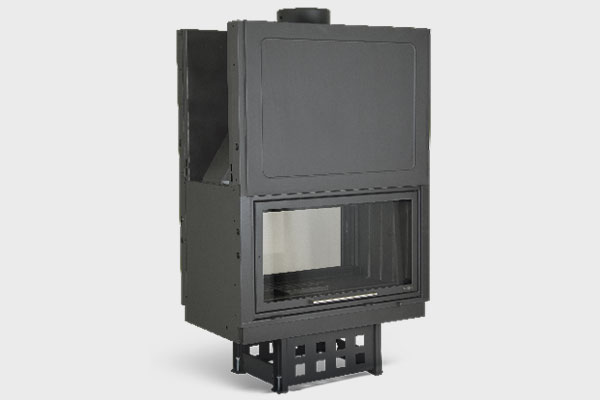

Flat monobloc see through hearth with 2 sliding and opening doors. It is characterized by the large dimensions of the combustion chamber and by its equally high output. Its linear design combined with the panoramic view of the fire and its ability to be placed in the center of a space make it ideal wherever we want modern design. Available in natural flow or with hot air fan. Our price for the air-fan version includes: double suction motor 800 m³ / h of German origin, relief louvre and two blinds for the hot air ducts.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
| Πλάτος / Width | cm | 102 |
| Βάθος / Depth | cm | 60 |
| Ύψος / Height | cm | 174 |
| Θερμική ισχύς / Thermal power | KW | 14,5 |
| Θερμική απόδοση / Efficiency | % | 75 |
| Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 4-6 |

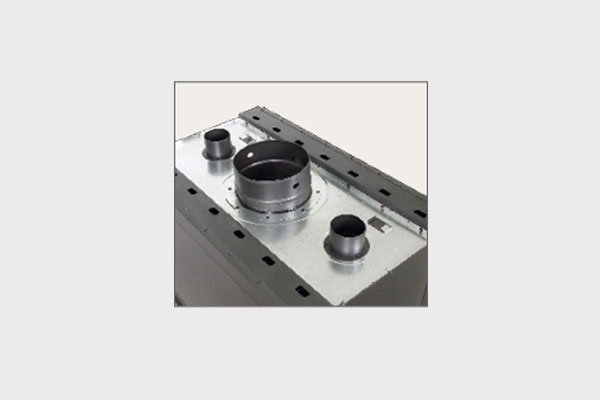

| ø Έξοδος καυσαερίων / Smoke outlet | mm | 250 |
| ø Άνοιγμα εισαγωγής αέρα για την καύση / Outer air inlet dimensions | mm | 150 |
| ø Παροχή αέρα αερόθερμου ( είσοδος ) / Fan heater air inlet ( intake) | mm | 2 X 120 |
| ø Παροχή αέρα αερόθερμου ( έξοδος) / Fan heater air inlet (exit) | mm | 2 X 100 |
| Συνολικό βάρος / Total weight | Kg | 338 |
| CO ( σε 13% O2 ) | mg/Nm³ | 235,68 |
| Θερμοκρασία εξόδου καυσαερίων ( μ.ο. ) / Smoke exit temperature (Avg.) | ˚C | 290 |
See details :
