Description

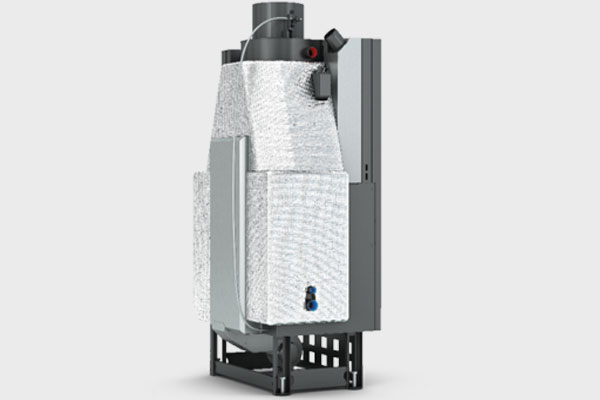

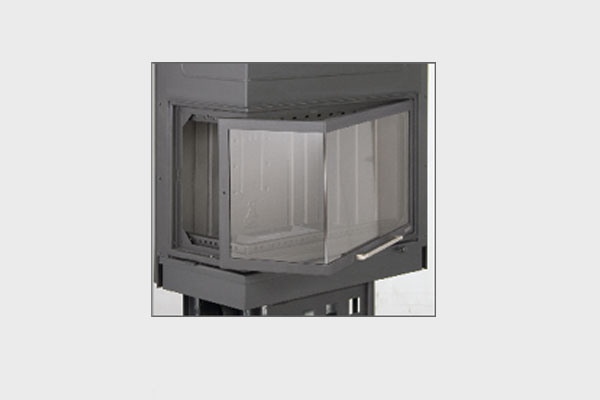

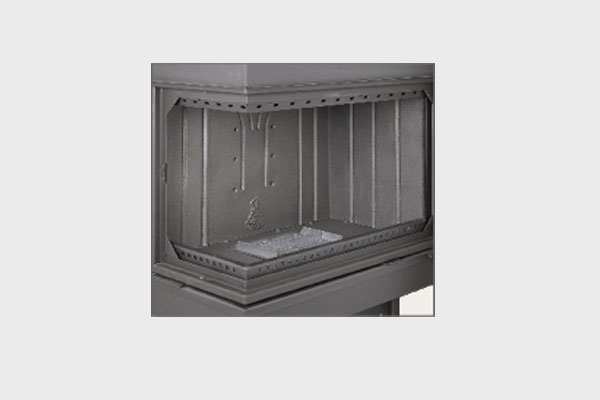

Triple energy radiant fireplace (water – air – thermal radiation) on both sides. Can be connected in parallel with the existing heating system (oil or gas boiler). With hot water production. Its manufacturing quality guarantees long life, low consumption, great economy. Inside lined with cast iron. The price indicated doesn’t include the cost of the motor and the heat chamber for the air heater’s operation. Upon request, it comes with a 90º ceramic glass with an extra cost of 310 €.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
Πλάτος / Width | cm | 94 |
Βάθος / Depth | cm | 66 |
Ύψος / Height | cm | 176 |
Θερμική ισχύς / Usefull output | KW | 25,5 |
Θερμική ισχύς νερού / Usefull output in water | KW | 17,5 |
Θερμική απόδοση / Efficiency | % | 75 |
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 5-8 |
Περιεχόμενο νερού / Water content | lt | 100 |
ø έξοδος καπνού / Ø Combustion product outlet | cm | 250 |
ø παροχή αέρα / Ø External air intake | cm | 150 |
ø Παροχή αέρα αερόθερμου ( είσοδος ) / Air supply for fan (entry) | mm | 120 |
ø Παροχή αέρα αερόθερμου ( έξοδος) / Air supply for fan (exit) | mm | 75 |
Συνολικό βάρος / Total weight | Kg | 290 |
CO ( σε / in 13% O2 ) | mg/Nm³ | 230,7 |
Θερμοκρασία εξόδου καυσαερίων ( μ.ο. ) / Combustion outlet temperature (av) | ˚C | 290 |
