Description

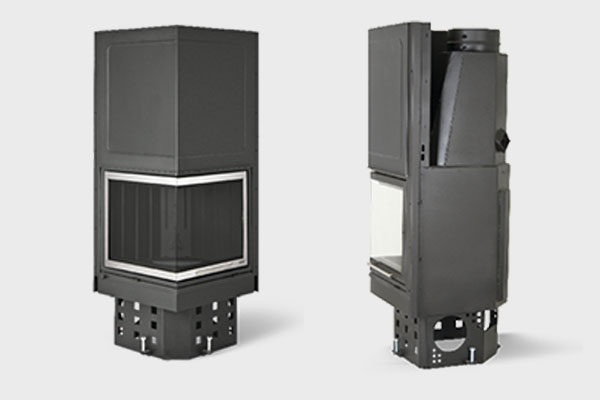

The QUATTRO QL 500 energy save fireplace is the small model of the corner series. Suitable for very small spaces. Sliding and opening doors, primary and secondary combustion make it the best option to be placed in an area subject to space limitation. It is available in natural flow or with hot air fan. Our price for the air-fan version includes: double suction motor 800 m³ / h of German origin, relief louvre and two blinds for the hot air ducts. It is also available with an INOX door with an extra 180 €.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
Πλάτος / Width | cm | 62 |
Βάθος / Depth | cm | 62 |
Ύψος / Height | cm | 168 |
Θερμική ισχύς / Thermal power | KW | 13 |
Θερμική απόδοση / Efficiency | % | 74 |
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 4-6 |
ø Έξοδος καυσαερίων / Smoke outlet | mm | 250 |
ø Άνοιγμα εισαγωγής αέρα για την καύση / Outer air inlet dimensions | mm | 150 |
ø Παροχή αέρα αερόθερμου ( είσοδος ) / Fan heater air inlet ( intake) | mm | 2 X 120 |
ø Παροχή αέρα αερόθερμου ( έξοδος) / Fan heater air inlet (exit) | mm | 2 X 100 |
Συνολικό βάρος / Total weight | Kg | 207 |
CO ( σε 13% O2 ) | mg/Nm³ | 224,64 |
Θερμοκρασία εξόδου καυσαερίων ( μ.ο. ) / Smoke exit temperature (Avg.) | ˚C | 290 |
