Description

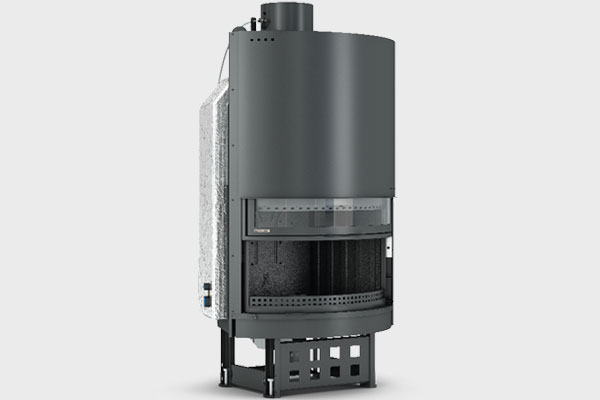

Fireplace of triple energy (water – air – thermal radiation) with oval, round glass. Can be connected, using an appropriate hydraulic KIT, with the existing installation (oil or gas boiler). With proper connection it can produce hot water. Long life. It is lined internally with cast iron. The price doesn’t include the cost of the motor and the heat chamber for the heater’s hot-air heater.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
Πλάτος / Width | cm | 92 |
Βάθος / Depth | cm | 79 |
Ύψος / Height | cm | 177 |
Θερμική ισχύς / Usefull output | KW | 33,5 |
Θερμική ισχύς νερού / Usefull output in water | KW | 23,5 |
Θερμική απόδοση / Efficiency | % | 75 |
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 5-8 |
Περιεχόμενο νερού / Water content | lt | 130 |
ø έξοδος καπνού / Ø Combustion product outlet | cm | 250 |
ø παροχή αέρα / Ø External air intake | cm | 150 |
ø Παροχή αέρα αερόθερμου ( είσοδος ) / Air supply for fan (entry) | mm | 120 |
ø Παροχή αέρα αερόθερμου ( έξοδος) / Air supply for fan (exit) | mm | 75 |
Συνολικό βάρος / Total weight | Kg | 340 |
CO ( σε / in 13% O2 ) | mg/Nm³ | 230,58 |
Θερμοκρασία εξόδου καυσαερίων ( μ.ο. ) / Combustion outlet temperature (av) | ˚C | 290 |
