Description

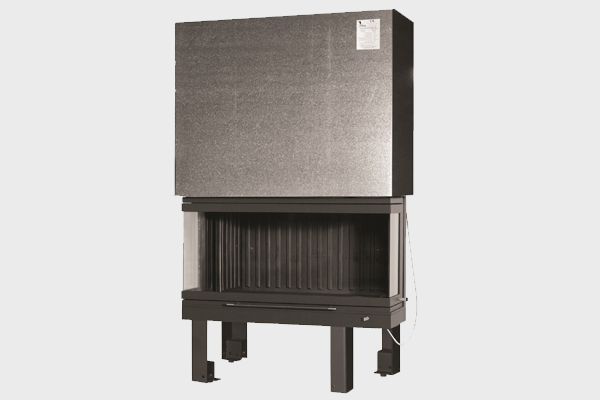

Three-sided view metal fireplace with natural hot air flow. Ensure unlimited view of the fire due to its design. Steel frame of 4 mm thick and a combustion chamber lined with cast iron detachable plates, 10-12 mm thick. Pre-defined air intake for both secondary and tertiary combustion with silent operation. It has sliding door, ensured by the telescopic guides of the German company SCHOCK and fireproof ceramic glass.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | ΠΛΑΪΝΟ ΤΖΑΜΙ / SIDE GLASS 17cm | ΠΛΑΪΝΟ ΤΖΑΜΙ / SIDE GLASS 43cm |
| Πλάτος / Width | cm | 94 | 94 |
| Βάθος / Depth | cm | 52 | 54 |
| Ύψος / Height | cm | 187 | 188 |
| Διαστάσεις στομίου εστίας (Π x Β x Υ) / Fireplace mouth measurement (W x D x H) | cm | 72 x 42 x 49 | 75 x 44 x 46 |
| Θερμική ισχύς / Thermal power | KW | 14 | 14 |
| Θερμική απόδοση / Efficiency | % | 68 | 68 |
| Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 4 | 4 |
| ø Έξοδος καυσαερίων / Smoke outlet | cm | 25 | 25 |
| Συνολικό βάρος / Total weight | Kg | 215 | 224 |
