Description

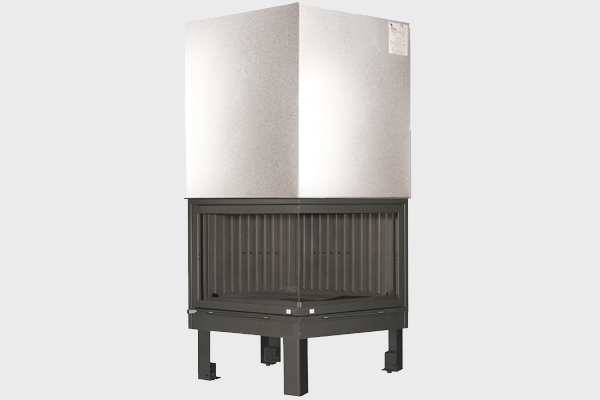

Two side view metal energy save fireplace. It is recommended for corners with space limitation on both sides. It is made from 4 mm thick steel and is lined internally with cast iron plates, removable, screwed on the metal frame. The fireplace has natural air flow and is available in two versions: either with an opening outward or an opening-sliding upwards door. Secondary and tertiary combustion, air curtain and adjustable flap for better exhaust flow regulation.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
| Πλάτος / Width | cm | 66 |
| Βάθος / Depth | cm | 66 |
| Ύψος / Height | cm | 188 |
| Διαστάσεις στομίου εστίας (Π x Β x Υ) / Fireplace mouth measurement (W x D x H) | cm | 53 x 53 x 37 |
| Θερμική ισχύς / Thermal power | KW | 13.8 |
| Θερμική απόδοση / Efficiency | % | 68 |
| Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 4 |
| ø Έξοδος καυσαερίων / Smoke outlet | cm | 25 |
| Συνολικό βάρος / Total weight | Kg | 197 |
