Description

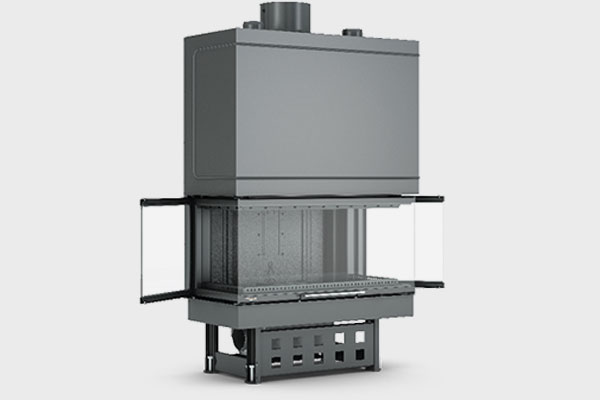

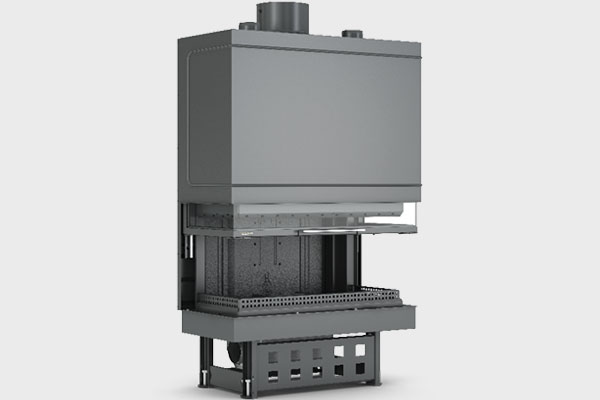

An impressive three-sided energy save fireplace in its design, its dimensions and robustness. Its two sides open outwards, without metal columns and with the crystals reaching back. CAMINODESIGN’s TF 1000 B fireplace is available in natural flow or with a warm-air fan. Our price for the air-fan version includes: double suction motor 800 m³ / h of German origin, relief louvre and two blinds for the hot air ducts.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
Πλάτος / Width | cm | 103 |
Βάθος / Depth | cm | 62 |
Ύψος / Height | cm | 174 |
Θερμική ισχύς / Thermal power | KW | 12 |
Θερμική απόδοση / Efficiency | % | 75 |
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 4-6 |
ø Έξοδος καυσαερίων / Smoke outlet | mm | 250 |
ø Άνοιγμα εισαγωγής αέρα για την καύση / Outer air inlet dimensions | mm | 150 |
ø Παροχή αέρα αερόθερμου ( είσοδος ) / Fan heater air inlet ( intake) | mm | 2 X 120 |
ø Παροχή αέρα αερόθερμου ( έξοδος) / Fan heater air inlet (exit) | mm | 2 X 100 |
Συνολικό βάρος / Total weight | Kg | |
CO ( σε 13% O2 ) | mg/Nm³ | |
Θερμοκρασία εξόδου καυσαερίων ( μ.ο. ) / Smoke exit temperature (Avg.) | ˚C |
