Description

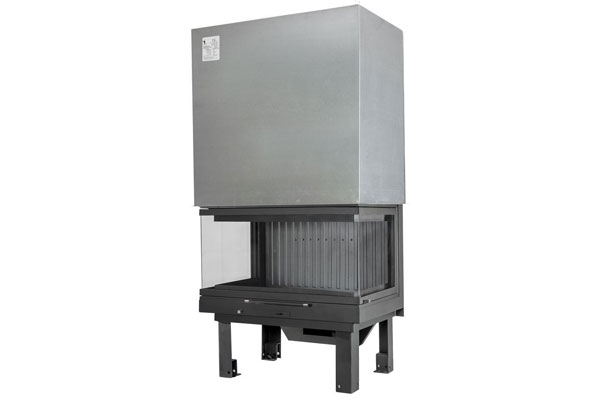

Three-sided energy fireplace with fan heater. Unlimited view of the fire due to its design. 4 mm thick steel frame and lined, the combustion chamber has cast iron detachable plates 10-12 mm thick. Default air intake for secondary and tertiary combustion. The operation of its sliding door is silent and is ensured by the telescopic guides of the German company SCHOCK and fireproof ceramic glass.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | ΠΛΑΪΝΟ ΤΖΑΜΙ / SIDE GLASS 17cm | ΠΛΑΪΝΟ ΤΖΑΜΙ / SIDE GLASS 43cm |
| Πλάτος / Width | cm | 94 | 94 |
| Βάθος / Depth | cm | 55 | 59 |
| Ύψος / Height | cm | 188 | 188 |
| Διαστάσεις στομίου εστίας (Π x Β x Υ) / Fireplace mouth measurement (W x D x H) | cm | 74 x 44 x 43 | 74 x 44 x 46 |
| Θερμική ισχύς / Thermal power | KW | 15 | 15 |
| Θερμική απόδοση / Efficiency | % | 71 | 71 |
| Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 4 | 4 |
| ø Έξοδος καυσαερίων / Smoke outlet | cm | 25 | 25 |
| Συνολικό βάρος / Total weight | Kg | 271 | 280 |
