Description

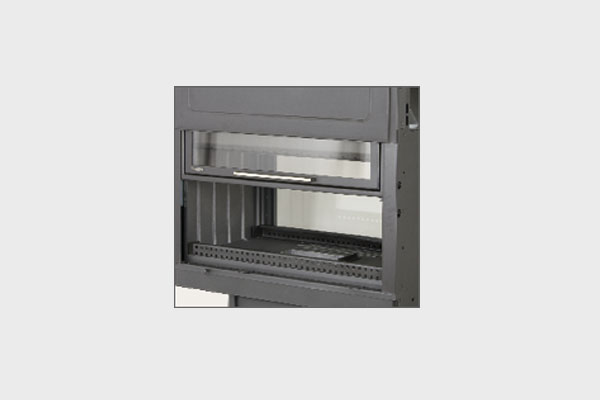

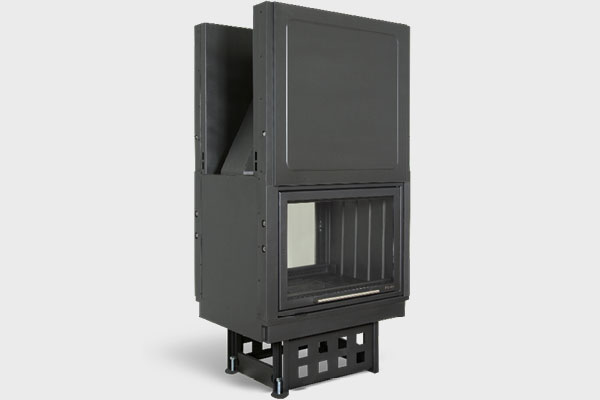

Monobloc see through energy save fireplace with 2 doors, sliding and opening outwards with very large combustion area. Suitable for separating 2 rooms or for installation in a central part of the house where the projection of fire from everywhere is required. Available in natural flow or with hot air fan. Our price for the air-fan version includes: double suction motor 800 m³ / h of German origin, relief louvre and two blinds for the hot air ducts.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
Πλάτος / Width | cm | 81 |
Βάθος / Depth | cm | 60 |
Ύψος / Height | cm | 180 |
Θερμική ισχύς / Thermal power | KW | 4-6 |
Θερμική απόδοση / Efficiency | % | 70 |
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 4-6 |

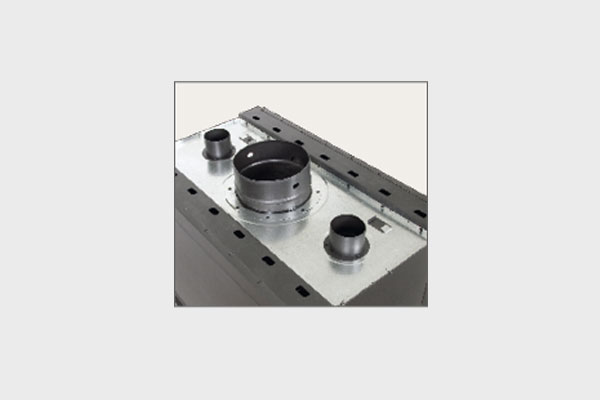

ø Έξοδος καυσαερίων / Smoke outlet | mm | 250 |
ø Άνοιγμα εισαγωγής αέρα για την καύση / Outer air inlet dimensions | mm | 150 |
ø Παροχή αέρα αερόθερμου ( είσοδος ) / Fan heater air inlet ( intake) | mm | 2 X 120 |
ø Παροχή αέρα αερόθερμου ( έξοδος) / Fan heater air inlet (exit) | mm | 2 X 100 |
Συνολικό βάρος / Total weight | Kg | 250 |
CO ( σε 13% O2 ) | mg/Nm³ | 233,08 |
Θερμοκρασία εξόδου καυσαερίων ( μ.ο. ) / Smoke exit temperature (Avg.) | ˚C | 290 |
