Description

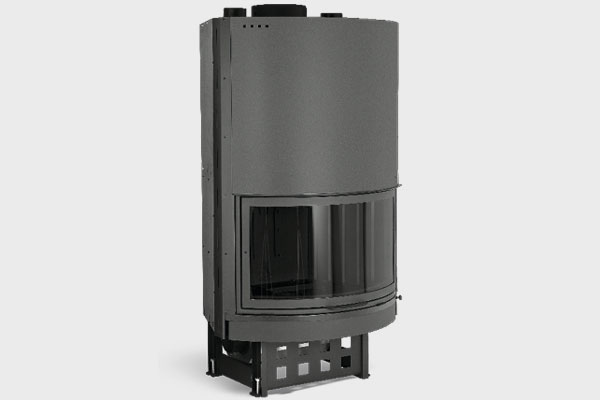

Monoblock round combustion chamber with long radius circular glass and very good fire visibility from all parts of the house. The internal dimensions of the hearth allow the installation of large size firewood. It is recommended for placement in the corner but also in the middle of the wall and is available in natural flow or with hot air fan. Our price for the air-fan version includes: double suction motor 800 m³ / h of German origin, relief louvre and two blinds for the hot air ducts.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
Πλάτος / Width | cm | 90 |
Βάθος / Depth | cm | 73 |
Ύψος / Height | cm | 170 |
Θερμική ισχύς / Thermal power | KW | 13,5 |
Θερμική απόδοση / Efficiency | % | 70 |
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 4-6 |
ø Έξοδος καυσαερίων / Smoke outlet | mm | 250 |
ø Άνοιγμα εισαγωγής αέρα για την καύση / Outer air inlet dimensions | mm | 150 |
ø Παροχή αέρα αερόθερμου ( είσοδος ) / Fan heater air inlet ( intake) | mm | 2 X 120 |
ø Παροχή αέρα αερόθερμου ( έξοδος) / Fan heater air inlet (exit) | mm | 2 X 100 |
Συνολικό βάρος / Total weight | Kg | 260 |
CO ( σε 13% O2 ) | mg/Nm³ | 230,58 |
Θερμοκρασία εξόδου καυσαερίων ( μ.ο. ) / Smoke exit temperature (Avg.) | ˚C | 290 |
