Description

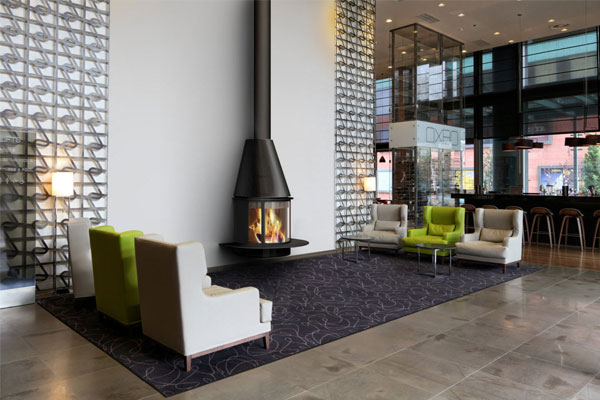

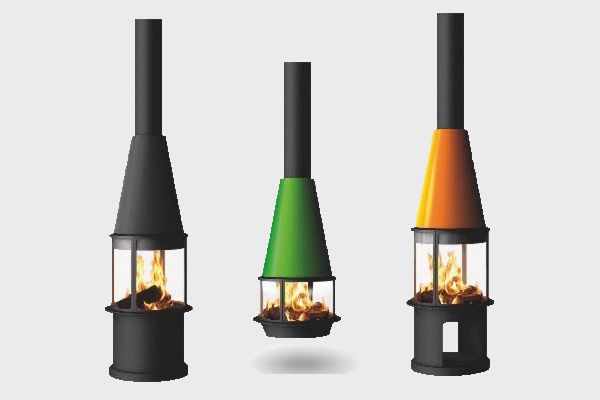

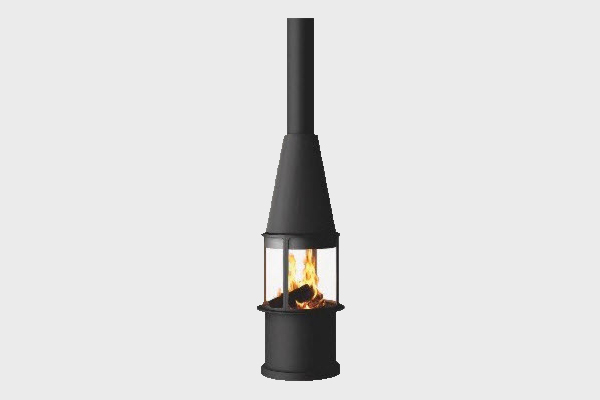

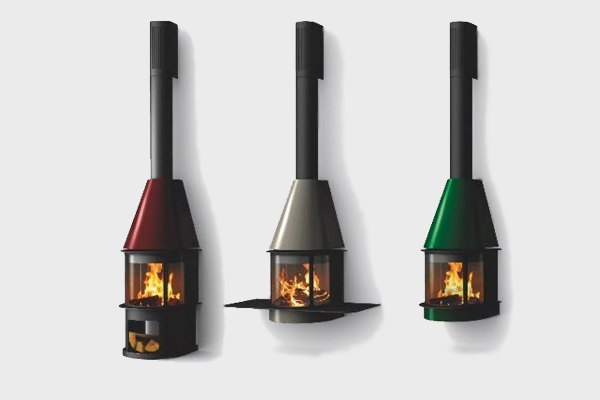

A proposal that is modern and contemporary by the Spanish company TRAFORART, is the Arlet immediate installation fireplace. Central, with small dimensions, but with a view of the fire from everywhere in the space, or in the middle of a wall with elliptical lines. With or without the base and options for color painting its top.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | ΚΕΝΤΡΙΚΟ/CENTER | ΤΡΙΦΑΤΣΟ/THREE SIDE |
| Πλάτος / Width | cm | 56 | 90 |
| Βάθος / Depth | cm | 56 | 69 |
| Ύψος / Height | cm | 230 | 230 |
| Διαστάσεις στομίου εστίας (Π x Β x Υ) / Fireplace mouth measurement (W x D x H) | cm | 59 | 59 |
| Ωφέλιμη ισχύς (min/max) / Useful heat output | KW | 14,4 | 11,6 |
| Απόδοση / Efficiency | % | 73 | 82 |
| Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | ||
| ø έξοδος καπνού / Ø Combustion product outlet | cm | 18 | 18 |
| ø παροχή αέρα / Ø External air intake | cm | ||
| Συνολικό βάρος / Total weight | Kg | 100 | 160 |
| Θερμαινόμενος όγκος (μόνωση σύμφωνα με το νόμο 10/91) / Vol. that can be heated (insul. env. by Law 10/91) | m³ |
