Description

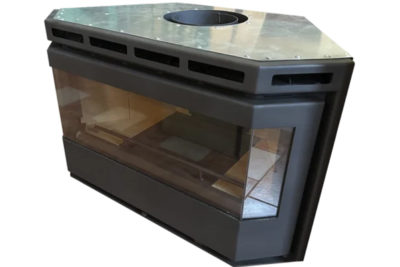

Choose between vermiculite and cast iron, with a ventilator or a natural flow. A modern and large polygon energy save fireplace from Thermozel which, due to its design line, occupies a relatively small space.
| ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
| Πλάτος / Width | cm | 95 |
| Βάθος / Depth | cm | 66 |
| Ύψος / Height | cm | 154 |
| Διαστάσεις στομίου εστίας (Π x Β x Υ) / Fireplace mouth measurement (W x D x H) | cm | 70 x 48 x 42 |
| Ωφέλιμη ισχύς (min/max) / Useful heat output | KW | 3/18 |
| Απόδοση / Efficiency | % | 74 |
| Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 1/4,8 |
| ø έξοδος καπνού / Ø Combustion product outlet | cm | 25 |
| ø παροχή αέρα / Ø External air intake | cm | |
| Συνολικό βάρος / Total weight | Kg | 283 |
| Θερμαινόμενος όγκος (μόνωση σύμφωνα με το νόμο 10/91) / Vol. that can be heated (insul. env. by Law 10/91) | m³ | 170/360 |
