Description

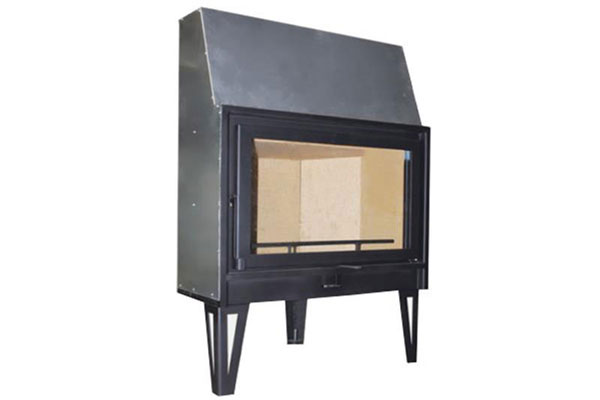

The medium-sized energy fireplace of the AERO series. Choose between its various options. With vermiculite, the cast iron, with a vanishing or open outwards door, with a ventilator or natural flow. A modern energy save fireplace in many versions by THERMOZEL.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
Πλάτος / Width | cm | 91 |
Βάθος / Depth | cm | 66 |
Ύψος / Height | cm | 154 |
Διαστάσεις στομίου εστίας (Π x Β x Υ) / Fireplace mouth measurement (W x D x H) | cm | 70 x 48 x 47 |
Ωφέλιμη ισχύς (min/max) / Useful heat output | KW | 4/19 |
Απόδοση / Efficiency | % | 72 |
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 1/3,9 |
ø έξοδος καπνού / Ø Combustion product outlet | cm | 25 |
ø παροχή αέρα / Ø External air intake | cm | |
Συνολικό βάρος / Total weight | Kg | 269 |
Θερμαινόμενος όγκος (μόνωση σύμφωνα με το νόμο 10/91) / Vol. that can be heated (insul. env. by Law 10/91) | m³ | 170/360 |
