Description

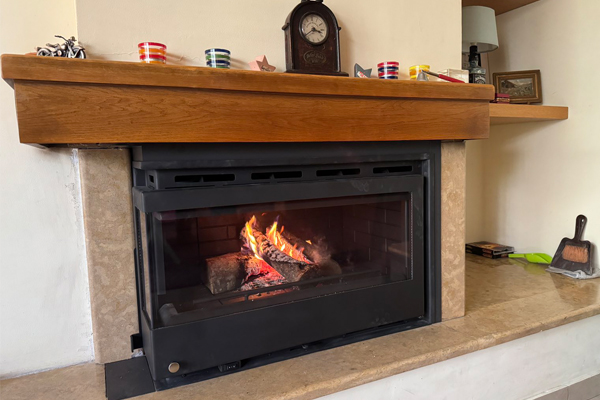

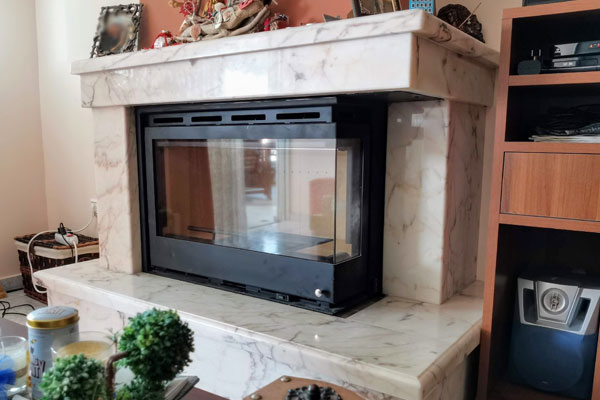

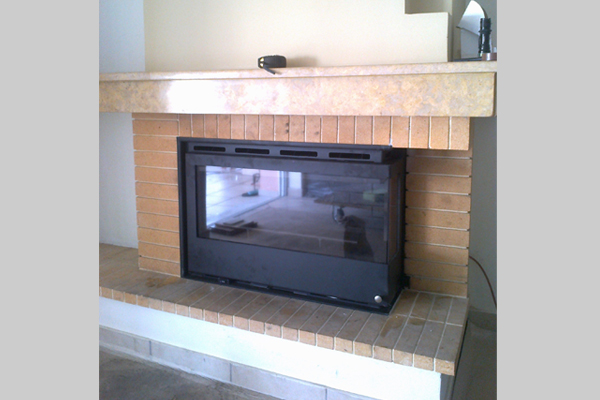

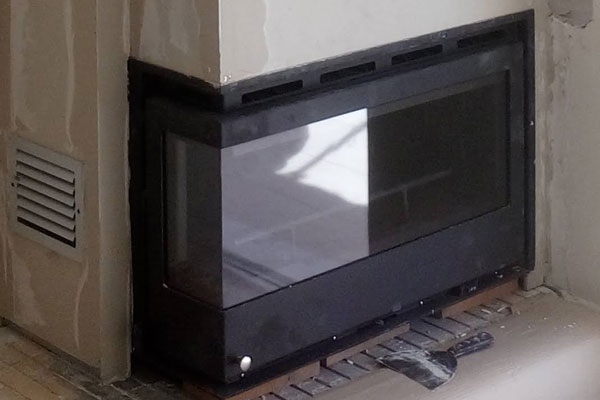

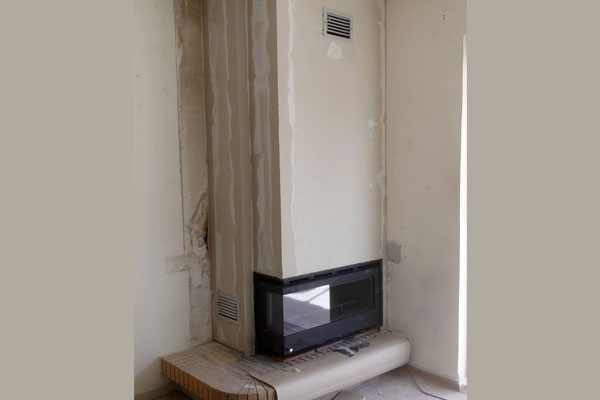

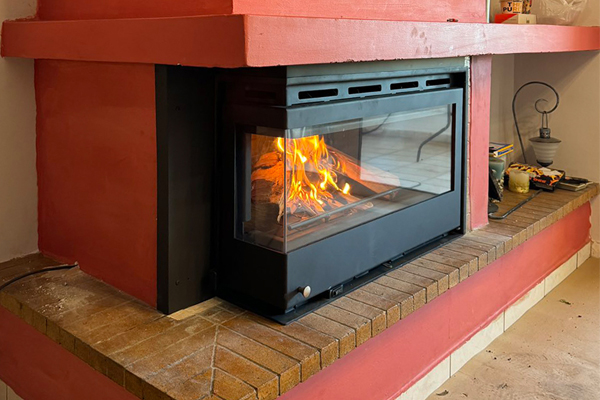

THERMOZEL’s energy-efficient two-sided cassette has a modern construction and simple lines. Its main feature is the nice view of the fire from two points. With internal vermiculite or cast-iron lining, metal frame, refractory ceramic glass up to 750 ° C, silent door, removable ash drawer, air curtain, two ventilators, adjustable primary air and afterburner system, it is an economical and quality solution of high aesthetics.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | |
Πλάτος / Width | cm | 82 |
Βάθος / Depth | cm | 52 |
Ύψος / Height | cm | 52 |
Διαστάσεις στομίου εστίας (Π x Β x Υ) / Fireplace mouth measurement (W x D x H) | cm | 76x42x36 |
Ωφέλιμη ισχύς (min/max) / Useful heat output | KW | 3-12 |
Απόδοση / Efficiency | % | 71 |
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | 1-4 |
ø έξοδος καπνού / Ø Combustion product outlet | cm | 20 |
ø παροχή αέρα / Ø External air intake | cm | |
Συνολικό βάρος / Total weight | Kg | 108-116 |
Θερμαινόμενος όγκος (μόνωση σύμφωνα με το νόμο 10/91) / Vol. that can be heated (insul. env. by Law 10/91) | m³ | 240 |
