Description

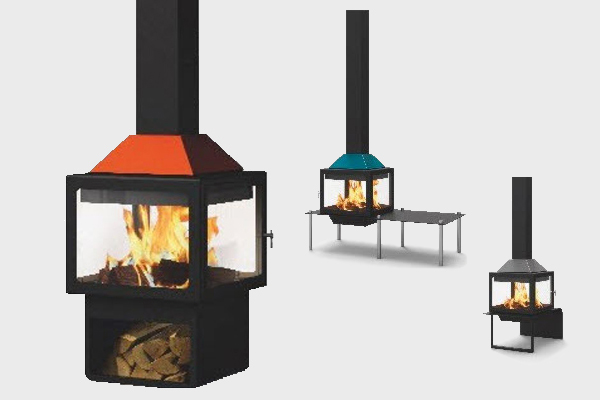

Energy save metal fireplace, immediate installation, made by the Spanish company TRAFORART. It is available in two versions: central for installation in the center of the room or middle for fitting in the middle of a wall. Available in black or in the RAL color of your choice. Its base is also optional. With two open outwards doors. Unique view from everywhere in your space, easy installation, several options (base, color, chimney extension, metal corner).
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / TECHNICAL DATA | ΜΟΝΑΔΑ ΜΕΤΡΗΣΗΣ / MEASURING UNIT | ΚΕΝΤΡΙΚΟ/CENTER | ΤΡΙΦΑΤΣΟ/THREE SIDE |
Πλάτος / Width | cm | 70 | 70 |
Βάθος / Depth | cm | 70 | 48 |
Ύψος / Height | cm | 270 | 270 |
Διαστάσεις στομίου εστίας (Π x Β x Υ) / Fireplace mouth measurement (W x D x H) | cm | 55 | 55 |
Ωφέλιμη ισχύς (min/max) / Useful heat output | KW | 14,4 | 9,5 |
Απόδοση / Efficiency | % | 60 | 77 |
Κατανάλωση καυσίμου (ξύλα) (min/max) / Fuel consumption (wood) | Kg/h | ||
ø έξοδος καπνού / Ø Combustion product outlet | cm | 20 | 18 |
ø παροχή αέρα / Ø External air intake | cm | ||
Συνολικό βάρος / Total weight | Kg | 140 | 120 |
Θερμαινόμενος όγκος (μόνωση σύμφωνα με το νόμο 10/91) / Vol. that can be heated (insul. env. by Law 10/91) | m³ |
